Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force

China Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force supplier
Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force supplier Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force supplier Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force supplier

Large Image :  Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force

Product Details:

Place of Origin: Guangdong China
Brand Name: OEM
Certification: ISO TS15949
Model Number: Hydraulic Hose Crimping Machine For air suspension Spring

Payment & Shipping Terms:

Minimum Order Quantity: one pc/pcs
Price: US $3,000 - 7,500 / Set , price is negotiable
Packaging Details: strong wooden box with pallet
Delivery Time: Shipped in 30 days after payment
Payment Terms: Western Union, L/C, T/T, Money Gram, Paypal
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Crimping Rang:: 20MM-175MM Model:: Suspension Spring
OEM Code:: Hydraulic Hose Crimping Machine Power:: 4KW
Standard Dies Sets:: 10 (size Customized) Application:: For All Kinds Of Car Mode, Benz, BMW, Audi, VW, Toyato, LandRove
Warranty:: 12 Months Place Of Origin: Canton China
Crimping Force:: 100T Delivery:: 3-5 Days
Package:: Neutral Packing Or As Requirement Acurracy:: 0.05mm
Max Opening:: 175mm Size:: L850*W900*H1300mm
Voltage:: 380V And 220V(according To Customer Requests) System Pressure:: 30Mpa
Weight:: 300kg-350kgs System Pressure:: 30 Mpa

Mananul Hydraulic Hose Crimping Machines For Air Suspension Air Spring Wire Crimping Machine



Specification



Crimping Force: 100T
Crimping Range: 20mm-175mm
Standard Die Sets: 10 sets (the size can be done as your requests)
Voltage: 380V and 220V(according to customer requests)
Power: 4Kw
System Pressure: 30 Mpa
Accuracy: 0.05mm
Dimension: L850*W900*H1300mm
Gross Weight: 370Kg(includ 10 moulding sets)
Warranty: 12 Months
Application: Vehicle Air Suspensions, Air Springs, shock absorber
After Sales Service: We can give technical support for any problem any time
Package: Strong Wooden Box with Pallet

Crimping Way : Transverse and Vertical withhold



We can offer you 10 moulding sets free .

This machine can be valid to place rings all the usual models such as Mercedes, For Audi, For Landrover, For BMW and etc.









The brief introduction of high pressure hose crimping machine



Crimping machine connect rubber, plastic and steel rings through hydraulic power. It applies locking pressure through the mold of crimping machine to swage the metal joint on the matched auto air springs and high-pressure oil pipes, so as to complete the installation assembly.

It’s applicable to air spring, all kinds of machinery high and low pressure oil tube, air tube, automobile power steering tube, oil pipe, gasoline supply pipe, as well as buckling of construction fittings and hot water pipe.

It’s also widely used in vehicle, engineering machinery, hydraulic machinery, agricultural machinery and so on.

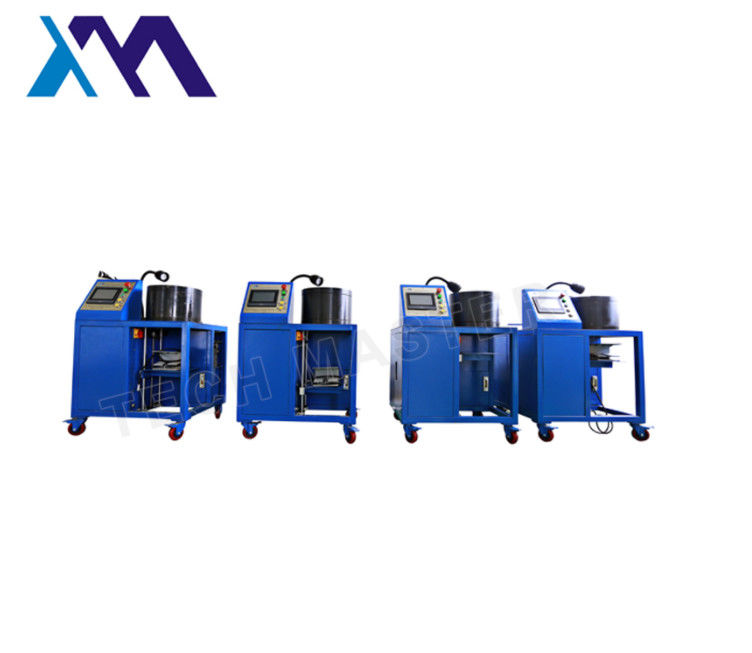

Real Photos of Products



Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force

Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force

Air Suspension Air Spring Wire Crimping Machine with 100T Crimping force





Installation and Operation



1. Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.



2. Regulating the scale

The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.



3. The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating movement, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.



4. Pressure regulation

The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder, when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).





This is our new hydraulic hose crimping machine, can crimp all types of



hydraulic hoses.



1.Air spring crimping machine provided with die sets range for 1/4' to 1 1/4' ID hoses.



2.Double angular surface-swaging force up to 450T, powerful yet makes crimping easy.



3.Piston,Cylinder,All dies are wire cut after hardening and grinding.



4.Powder coating body give it a Futuristic sleek & stylish looks.





Production Base




The finished products have passed the performance test, brust test, endurance test, leaking test and aging test, Performance test,Brust test,Endurance test,Leaking test.



So, the products in our company are guaranteed of their quality.



Our R&D team involves 5-10 professional and experienced staff, focusing on air suspension parts research and development. Also ready to answer and solve question from clients and work with the sales to provide the clients better service.









Our Customers Normally Ask These Questions About the Machine:



1. What does this machine used for?

It is can be uased to repair or manufacture air suspension, air spring for cars and truck. And also the industril hydraulic hose pipes



2. What is Voltage of this machine?

Original Voltage is 380V, but we can slao make according to your requirements.



3. Is it simple to learn to operate this machine?

It is easy for operating. We will give detailes instruction and CD to show our customers how to operate.



4. How to determine the dimensions of the die sets?

We process the die sets according to your dimendions or you tell us whta products you want to crimp, then we can determine the size.



5. How are you going to package the machine to prevent damage during shipping?

We will pack the machine with strong eooden box with pallet to insure the safety of the machine during shipping.
