|Acurracy:||0.05mm||Voltage:||380V / 220V|
|Warranty:||3 Years||MOQ:||1 Set|

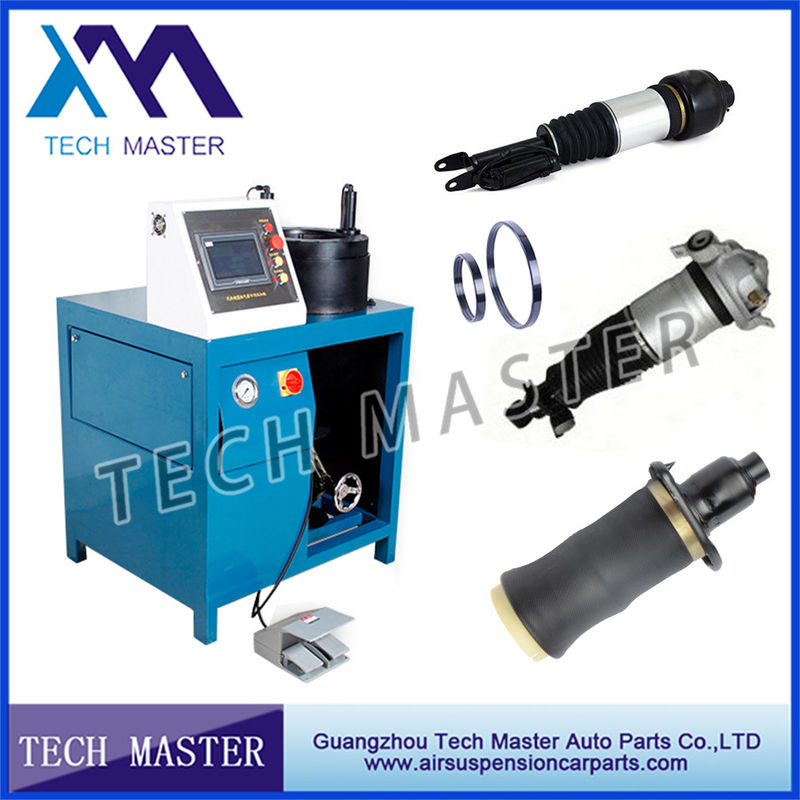

Auto Air Suspension Shock Hydraulic Hose Crimping Machine 0.05mm Accuracy
|Crimping force : 100T|
|Max opening : 175mm|
|Crimping range : 20mm-175mm|
|Acurracy : 0.05mm|
|Standard dies sets : 10 (size customized)|
|Voltage : 380V|
|Power : 4kw|
|System pressure : 30Mpa|
|Operate mode : auto , manual , pedal|
|Weight : 350kg-370kg|
|Dimension : L850*W900*H1300mm|
|Crimping way : Transverse withhold|
The brief introduction of high pressure hose crimping machine:
Crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
Installation and Operation
1. Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.
2. The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating movement, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.
3. Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder, when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.
* Reply your inquiry in 24 working hours
* OEM,buyer design , buyer label services provided
* Exclusive and unique solution can be provide to our customer by our well-trained and professional engineers and staffs
* Special discount and protection of sales area provided to our distributor
* Timely delivery
* Good after-sale service
* Factory price
Guangzhou Tech Master Auto Parts Co. Ltd. is a professional company specializing in developing, producing and exporting air suspension parts, such as, air spring, air strut, air shock absorber, air compressor, power steering pump, steering rack, control arms, other spare parts and suspension accessories, especially for Mercedes-Benz, BMW, Audi, Land Rover, Lincoln, and Ford. We also supply other models of the air suspension parts and a series of high-grade heavy truck front and rear air springs.
1. What does this machine used for?
It can be used to repair or manufacture air suspensions, air aprings for cars and trucks. and aslo the industrial hydraulic hose pipes.
2. What is Voltage of this machine?
Original Voltage is 380V, but we can also make according to your requirements
3. Is it simple to learn to opearte this machine?
It is easy for operating. we will give detailed instruction and CD to show our customers how to operate
4. How to determine the dimensions of the die sets?
We process the die sets according to your dimensions or you tell us what products you want to crimp, then we can determine the size.
5. how are you going to package the machine to prevent damage during shipping?
we will pack the machine with strong wooden box with pallet to insure the safety of the machine during shipping.
Contact Name: Cathy Yin
Mobile: 008618819270286 (WhatsApp/Wechat)
