Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension

Certification
Good quality Air Suspension Springs for sales
Good quality Air Suspension Springs for sales
Everything in the best order, the goods of good quality, fast shipping and very good service I recommend.Deserves 5 stars!

—— Mr Machiel de bruyn

The goods arrived today, they are very good, hope to do more business with you in the near future!

—— Mr Harri Plukka

I'm Online Chat Now

Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension

China Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension supplier
Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension supplier Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension supplier Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension supplier Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension supplier

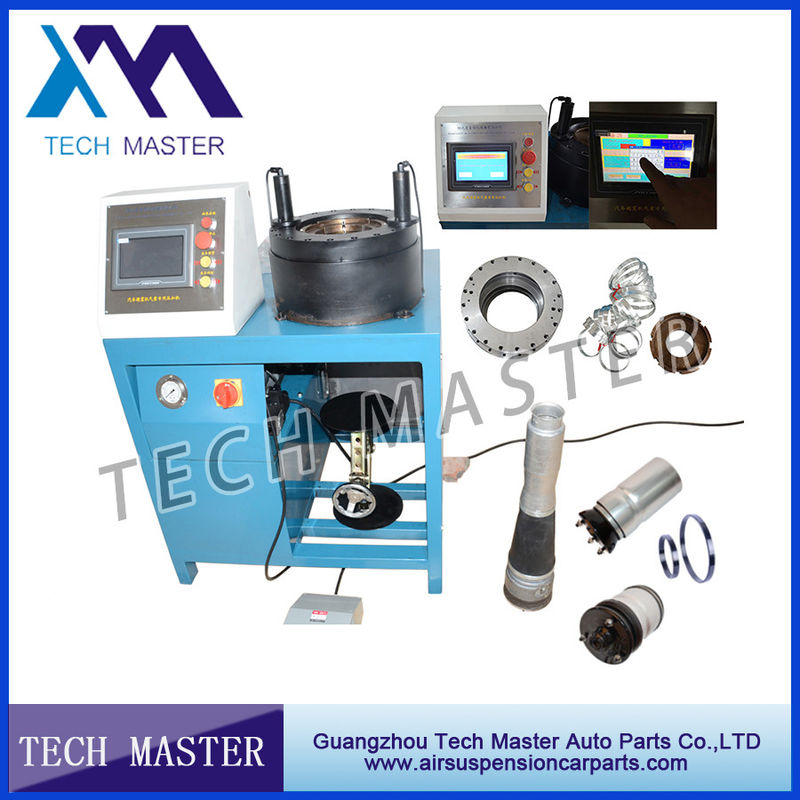

Large Image :  Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension

Product Details:

Place of Origin: Guangdong, China(Mainland)
Brand Name: TM
Certification: TS16949
Model Number: all kinds of model Mercedes, BMW, Audi, Land rover, Toyota

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 3 - 7 Days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 3,000 pcs per month
Contact Now
Detailed Product Description
Size: L850*W900*H1300mm Crimping Range: 20MM-175MM
Weight: 220kg-250kg Crimping Force: 100T
Acurracy: 0.05mm Voltage: 380V
Power: 34kw System Pressure: 30Mpa
Color: Blue Warranty: 3 Years

Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension



Quick Details:



Crimping force: 100T

Max opening: 175mm

Crimping range: 20mm-175mm

Acurracy: 0.05mm

Standard dies sets: 10 (size customized)

Voltage: 380V

Power: 4kw

System pressure: 30Mpa

Operate mode: auto, manual, pedal

Weight: 300kg-350kgs

Dimension: L850*W900*H1300mm

Crimping way : Transverse withhold



Photo:



Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension

Mercedes W164 W220 W221 W251 Hydraulic Hose Crimping Machine For Air Spring Air Suspension



Send Us An Inquiry



The brief introduction of high pressure hose crimping machine:



Crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.



Installation and Operation



1. Add sufficiently 79 liters 46# anti-abrasion hydraulic oil. If the room temperature is lower than10,10% transformer oil is need to add.

Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.



2. Regulating the scale

The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.



3. The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating movement, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.



4. Pressure regulation

The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder, when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).



5. Operation

Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.





This  is our new hydraulic hose crimping machine, can crimp all types of



hydraulic hoses.



1. Air spring crimping machine provided with die sets range for 1/4' to 1 1/4' ID hoses.



2. angular surface-swaging force up to 450T, powerful yet makes crimping easy.



3. Piston,Cylinder,All dies are wire cut after hardening and grinding.



4 . Powder coating body give it a Futuristic sleek & stylish looks.




Company Information:

Guangzhou Tech Master Auto Parts Co. Ltd. is a professional company specializing in developing, producing and exporting air suspension parts, such as, air spring, air strut, air shock absorber, air compressor, power steering pump, steering rack, control arms, other spare parts and suspension accessories, especially for Mercedes-Benz, BMW, Audi, Land Rover, Lincoln, and Ford. We also supply other models of the air suspension parts and a series of high-grade heavy truck front and rear air springs.




FAQ



1.Q: Can you accept small order?



   A: Yes, we can accept trail orders except special products , it is the starting of business. But according

 to different product the price may be higher as normal quantity.



2. Q : How to packing?



    A : 1 pc air spring / air bag in 1 neutral box. Large order could accept custom packaging.



3. Q : What payment method your company accepts?



    A : We accept T/T (Bank Transfer), Western Union , Paypal.



4. Q: How long for the production time?



A : Normally it will take about 3 - 10 days for manufacturing air suspension.



5. Q : What's your shipping terms?



A : After you do the payment, we will send order information to you and arrange order. Then, your order

 will be shipping to you by DHL/UPS/FEDEX. It costs about 3 - 10 working days to sent to you.



6. Q : What about the after sales service?



    A : We respect your feedback after received the goods.

         We provide 12 months warranty after goods arrive.
