Air Suspension Shock Absorber Crimping Machine Machine Range 20MM - 175MM
|Place of Origin:||China|
|Brand Name:||Tech Master|
|Model Number:||all kinds of model Mercedes, BMW, Audi, Land rover, Toyota|
Payment & Shipping Terms:
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Packed in carton firstly,and then reinforced with wooden case for outer packing|
|Delivery Time:||1 month after received your payment|
|Payment Terms:||T/T, Western Union, PayPal|
|Supply Ability:||3,000pcs per month|
hose crimping machine,
heavy duty shock absorbers

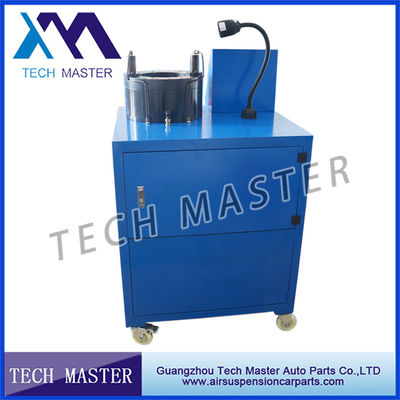

ODM Air Suspension Crimping Machine Hose Swage Machine Range 20MM - 175MM
Crimping force: 100T
Max opening: 175mm
Crimping range: 20mm-175mm
Standard dies sets: 10 (size customized)
System pressure: 30Mpa
Operate mode: auto, manual, pedal
Weight: 250kg- 300kg
crimping way : Transverse withhold
The brief introduction of high pressure hose crimping machine:
Crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.
Installation and Operation
1. Add sufficiently 79 liters 46# anti-abrasion hydraulic oil. If the room temperature is lower than10℃,10% transformer oil is need to add.
Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.
2. Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.
3. The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciproing movement, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.
4. Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder, when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.
This is our new hydraulic hose crimping machine, can crimp all types of
1.Air spring crimping machine provided with die sets range for 1/4' to 1 1/4' ID hoses.
2.Double angular surface-swaging force up to 450T, powerful yet makes crimping easy.
3.Piston,Cylinder,All dies are wire cut after hardening and grinding.
4.Powder coating body give it a Futuristic sleek & stylish looks.
