Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm

Certification
Good quality Air Suspension Springs for sales
Good quality Air Suspension Springs for sales
Everything in the best order, the goods of good quality, fast shipping and very good service I recommend.Deserves 5 stars!

—— Mr Machiel de bruyn

The goods arrived today, they are very good, hope to do more business with you in the near future!

—— Mr Harri Plukka

I'm Online Chat Now

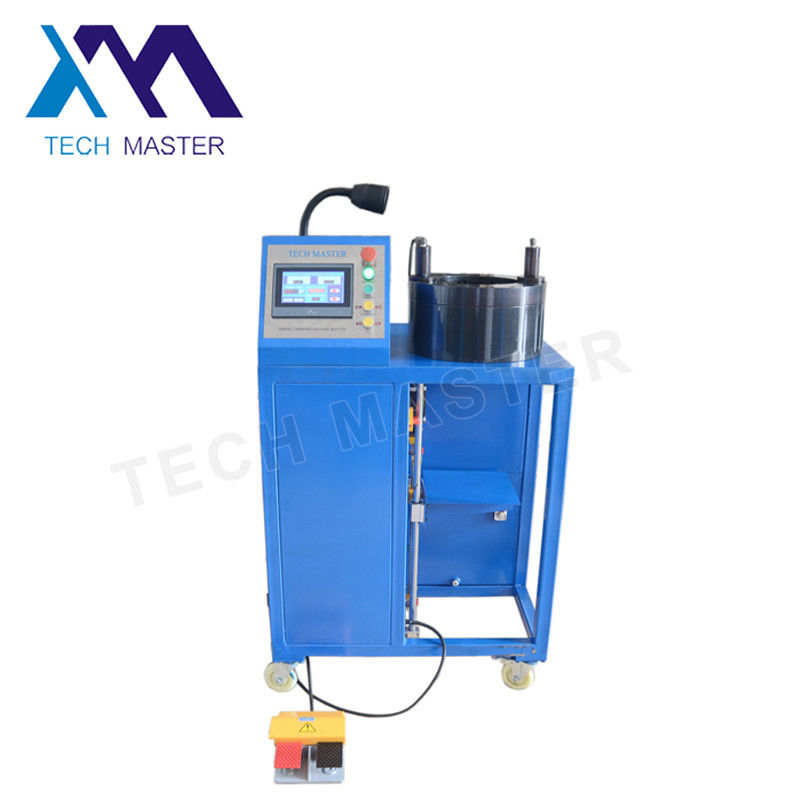

Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm

China Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm supplier
Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm supplier Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm supplier Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm supplier Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm supplier

Large Image :  Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm

Product Details:

Place of Origin: Guangdong, China(Mainland)
Brand Name: Tech master
Certification: TS16949
Model Number: all kinds of model Mercedes , BMW , Audi , Land rover , Toyota

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: USD7000/1PC
Packaging Details: Standard export plywood crate
Delivery Time: 3-7days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 1,000pcs per month
Contact Now
Detailed Product Description
Crimping Range: 20MM-175MM Crimping Force: 100T
Acurracy: 0.05mm Voltage: 380V
Power: 34kw System Pressure: 30Mpa
Weight: 300kg Size: L850*W900*H1300mm
High Light:

hose crimping machine

,

hydraulic hose crimp machine

Auto parts air machine molding Free 10sets dies manual finn-power hydraulic hose crimping machine for sale


Quick Details:



Description: High Accuracy Air Suspension Crimping Machine Hydraulic Hose Crimping Machine



Crimping Force: 100T



Crimping Range: 20mm-175mm



Standard Die Sets: 12 sets



Voltage: 380V and 220V



Power: 3.5KW



System Pressure: 30 Mpa



Accuracy: 0.05mm



Dimension: L850*W900*H1300mm



Gross Weight: 350Kg



Warranty: 3 Years



Application: Vehicle Air Suspensions, Air Springs, Air Bag, Air Bellow, Industrial Hydraulic Hose, Oil Hose, Water Pipe, Air Hose



After Sales Service: We can give technical support for any problem any time and we can teach you how to operate by providing videso.



Package: Strong Wooden Box with Pallet

Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm

Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm


Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm
Auto Parts Air Machine Molding Free Hydraulic Hose Crimp Machine 380V L850*W900*H1300mm


The brief introduction of high pressure hose crimping machine:


Crimping machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends. This machine features small and portable appearance, big force, low noise and easy to operate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.




Notices



1. Add sufficiently 25g of 46# anti-abrasion hydraulic oil.(the original is the best).

2. When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.

3. Prevent tool and other foreign matter from entering the locking head.

4. After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.

5. When working, the hand should not stretch into the locking head.

6. The power supply must be switched off when maintenance is done.

7. Be careful that three-phase machine can’t be in reverse. (Overhead view: motor fan rotates in clockwise direction that is the forward direction.)



This  is our new hydraulic hose crimping machine, can crimp all types of hydraulic hoses.



1.Air spring crimping machine provided with die sets range for 1/4' to 1 1/4' ID hoses.



2.Double angular surface-swaging force up to 450T, powerful yet makes crimping easy.



3.Piston,Cylinder,All dies are wire cut after hardening and grinding.



4.Powder coating body give it a Futuristic sleek & stylish looks.





Our Superiority


1.   We can translate your original drawing, and offer the best suggestion on design.

2.   We have set up a quality management system assuring the quality of all the products and services provided.

3.   All of our products must be checked carefully before shipping.

4.   We provide 1 year warranty.




Company Information:

Guangzhou Tech Master Auto Parts Co. Ltd. is a professional company specializing in developing, producing and exporting air suspension parts, such as, air spring, air strut, air shock absorber, air compressor, power steering pump, steering rack, control arms, other spare parts and suspension accessories, especially for Mercedes-Benz, BMW, Audi, Land Rover, Lincoln, and Ford. We also supply other models of the air suspension parts and a series of high-grade heavy truck front and rear air springs.



FAQ


1. What does this machine used for?

It can be used to repair or manufacture air suspensions, air aprings for cars and  trucks. and  aslo the industrial hydraulic hose pipes.



2. What is Voltage of this machine?

 Original Voltage is 380V, but we can also make according to your requirements



3. Is it simple to learn to opearte this machine?

It is easy for operating. we will give detailed instruction and CD to show our customers  how to operate



4. How to determine the dimensions of the die sets?

We process the die sets according to your dimensions or you tell us what products you  want to crimp, then we can determine the size.



5. how are you going to package the machine to prevent damage during shipping?

 we will pack the machine with strong wooden box with pallet to insure the safety of the machine during shipping.



Please feel free to contact us if you have any question.we would be glad to help you in our heart.Thanks
