Automatic Hydraulic Hose Crimping Machine for Mercedes, BMW, Audi, Land rover, Toyota Air Suspension Spring W221 W251 A6C5 X5 F02 L322
Description: Automatic Hydraulic Hose Crimping Machine for Mercedes, BMW, Audi, Land rover, Toyota Air Suspension Spring W221 W251 A6C5 X5 F02 L322
Crimping Force: 100T
Crimping Range: 20mm-175mm
Standard Die Sets: 10 sets
Voltage: 380V and 220V
System Pressure: 30 Mpa
Gross Weight: 350Kg
Warranty: 12 Months
Application: Vehicle Air Suspensions, Air Springs, Air Bag, Air Bellow, Industrial Hydraulic Hose, Oil Hose, Water Pipe, Air Hose
After Sales Service: We can give technical support for any problem any time and we can teach you how to operate by providing videso.
Package: Strong Wooden Box with Pallet
|Crimping force : 100T|
|Max opening : 175mm|
|Crimping range : 20mm-175mm|
|Acurracy : 0.05mm|
|Standard dies sets : 10 (size customized)|
|Voltage : 380V / 220V|
|Power : 4kw|
|System pressure : 30Mpa|
|Operate mode : auto , manual , pedal|
|Weight : 350kg-370kg|
|Dimension : L850*W900*H1300mm|
|Crimping way : Transverse withhold|
We have upgrated the crimping machine.
Here are some more advantages.
Promote Air Suspension Crimping Machine
Foot pedal of the machine controller was painted in accordance with the safety standards and different color on hydraulic presses. Was installed the connector to connect the foot pedal to the machine.
Crimping machine have been painted wear-resistant, preferably - polymeric paint RAL 5015 that reached to EU requirements.
Have been installed LED-lamps to illuminate the work area of the crimping head.
Have been installed four wheels for easy movement of the machine in the service centre.
Have been installed lifting plate for fixed and lifted the air spring and air shock.

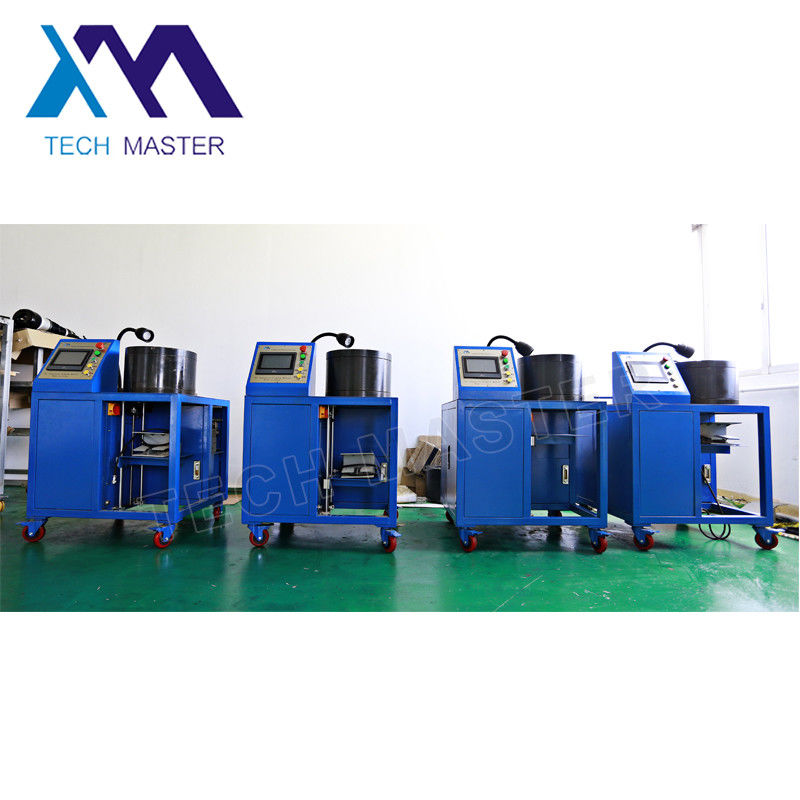

Some Photoes of the Machine:
Our Customers Normally Ask These Questions About the Machine:
1. What does this machine used for?
it is can be used to repair or manufacture air suspensions, air aprings for cars and trucks. and aslo the industrial hydraulic hose pipes.
2. What is Voltage of this machine?
Original Voltage is 380V or 220V, but we can also make according to your requirements
3. is it simple to learn to opearte this machine?
it is easy for operating. we will give detailed instruction and CD to show our customers how to operate
4. How to determine the dimensions of the die sets?
we process the die sets according to your dimensions or you tell us what products you want to crimp, then we can determine the size.
5. how are you going to package the machine to prevent damage during shipping?
we will pack the machine with strong wooden box with pallet to insure the safety of the machine during shipping.
6. Which Type of Hydraulic Oil and How Much Oil Should We Add?
Should Use Number 46 or 68 Antiwear Hydraulic Oil and Add 50-60 Litres.
7. How Long Should Change the Oil Inside the Machine?
if you use the machine frequently, should change the oil per year, if not, can change every 2 years.
Installation and Operation:
1. Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead connection is reliable.
2. The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating movement, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.
3. Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder, when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.
1. Add sufficiently 25g of 46# anti-abrasion hydraulic oil.(the original is the best).
2. When buckling, make the joint to locate the mould center as much as possible, the joint is not buckled on the hex nut.
3. Prevent tool and other foreign matter from entering the locking head.
4. After the work is finished for each time, the eight-block mould base must be made to extend to the greatest extent, this can make the spring to be at extension status. If not, the spring will be damage.
5. When working, the hand should not stretch into the locking head.
6. The power supply must be switched off when maintenance is done.
7. Be careful that three-phase machine can’t be in reverse. (Overhead view: motor fan rotates in clockwise direction that is the forward direction.)
Q1:What's your advantage?
1. Resonable price ,good service
2. Reliable quality , long working life
3. Quick and safe modes of payment
4. Ships items timely and quickly
5. Best Warranty,easy return
6. Our products are exported to most countries in the world.
Q2:To which places have you exported?
North America, Europe, Middle East, Africa, Southeast Asia?and so on.
Q3:How about your delivery time?
5-7 Working days after receiving your payment.
1. Air Suspension Springs and Shock Absorbers
2. Passenger Car Air Spring Rubber
3. Truck Suspension Cabin Air Springs
4. Spare Parts for Air Suspension Shock Absorbers
5. Convoluted Air Springs
6. Air Suspension Compressor
8. Power Steering Pump
Q5.How to guarantee your after sales service?
1.Strict inspection during production
2. Recheck the products before shipment to ensure our packaging in good condition
3. Track and receive feedback from our customers
Q6.What will you do for customer's complaint?
We will respond quickly to our customers within 24 hours.
|Air Suspension Shock Absorber and Air Spring|
|W230||A2303200438 A2303200338 A2303208613 A2303208513|
|W251||A2513201931 2513203013 2513202231 2513200730 2513203113 2513200425 2513201931|
|W164||A1643201204 A1643200731 1643206013 1643205813 1643204513 1643206113 1643202031 1643202431 1643200130 1643200625 1643200925 1643200225 1643201025|
|W220(4 Matic)||A2203202238 A2203202138|
|W221(4 Matic)||A2213200438 A2213200538|
|W221||A2213205613 A2213205513 2213204913|
|W211||A2113206113 A2113206013 2113209313 2113209413 2113200825 2113200725 2113200925 2113209513 2113209613 2193201113 2193201213 2113201938 2113202038 2113208313 2113208413 2113205513 2113206013 2113205638 2113205413 2113205538 2113205338 2113205438|
|Air Suspension Shock Absorber and Air suspension Bag|
|E66(with ADS)||37126785535 37126785536|
|E65 E66||37126785537 37126785538|
|E53 X5||37116757501 37116757502 37116761443 37113761444 37126750355 37126750356 37121095579 37121095580|
|GT F07||37106781827 37106781828|
|E70 X6||37126790078 37126790081 37126790082|
|Air Shock Absorber and Air Bellow|
|L322||RNB000740G RNB000750G RNB500550 RNB501520 RNB501340 RNB501400 L2012885 RNB500550 RNB501410 RNB501530 LR051702|
|Sport L320||LR019993 LR023234 LR023235 LR032652 LR020001|
|Discovery 3||RNB501580 RNB501180 RNB000858 LR018398 RNB501610 RNB501220 RNB501480 RTD501090 RDP500433 RDP500434 RPD500880 RPD000309|
|Airmatic Shock Absorber and Air Suspension Spring|
|A6 4F C6 AVANT)||4F0616039AA 4F0616040AA 4F0616001J|
|Q7 (Front)||7L6616039D 7L6 616 040D|
|A6C5 A6C7||4Z7403031A 4Z7513032A 4Z7516031A 4Z7616051B 4Z7616051D 4Z7616052A 4Z7616051A 4G0616001T 4G0616002T|
|Q7 (Rear)||7L5616019D 7L5616020D|
|Q7(Front)||7P6616039N 7P6616040N 7L6616019K 7L6616020K|
|A8||4E0616039AF 4E0616040AF 4E0616001E 4E0616002E 4E0616001N|
|A8 D4||4H0616039AD 4H0616039H 4H0616039AK 4H0616039AB 4H0616039T 4H0616040AD 4H0616040AK 4H0616040AB 4G0616040AA 3Y5616039C 4H6616001F 4H6616001G 4H0616001M 4H0616001C 3Y5616040C 4H6616002F 4H6616002G 4H0616002M 4H0616002N 4H0616002C 4H0616040AE|
|VW (Front)||3D0616039D 3D0616039H 3D0616039L 3D5616039 3D7616039 3W0616039 3D0616040D 3D0616001J 3D0616002J 3D0616040L 3W8616040E|
|vw REAR||3D0616001J 3D0616001F 3W5616001A 3D0616002J 3W5616002A 3D5616039AD 3D5616040AD 3D0616002H 3D0616002K|
